Vibrating Gyratory Sifter For Sugar

MATERIAL FEATURES

For the sugar, they are always free flow, the major size is under 1.2mm, some customer may need the sugar less than 0.8mm, or less than 2.5mm, always there are some<0.2mm fines material in the sugar, the size sugar need to be removed. So it need vibrating screen sifter to finish the work, we call it gyratory vibrating sifter for sugar.

SCREENING DATA

In sugar industrial application, there are three function, grading, scalping and fines removing.

For the screener scalping, our screener have huge capacity,  the on-size sugar particle will pass through the mesh aperture in short time,    and when for fines removing, the capacity will less than scalping, the on-size sugar flow on the screener surface, the under-size sugar pass thought the mesh aperture, the self-cleaning ball will jump up and down to clean the mesh surface, because in this stage, the mesh aperture size always very thin, always 40mesh to 70mesh, so we need to do the mesh maintenance work when mesh blockage or broken, so the MHG side doors access screener could meet the request because we could move out the mesh from two side in short time.

When for sugar grading, the mesh size will be variable, but if adopt MHG drawer model screener, we could put your request mesh into the screener box in short time.

PRODUCTION INTRODUCTION

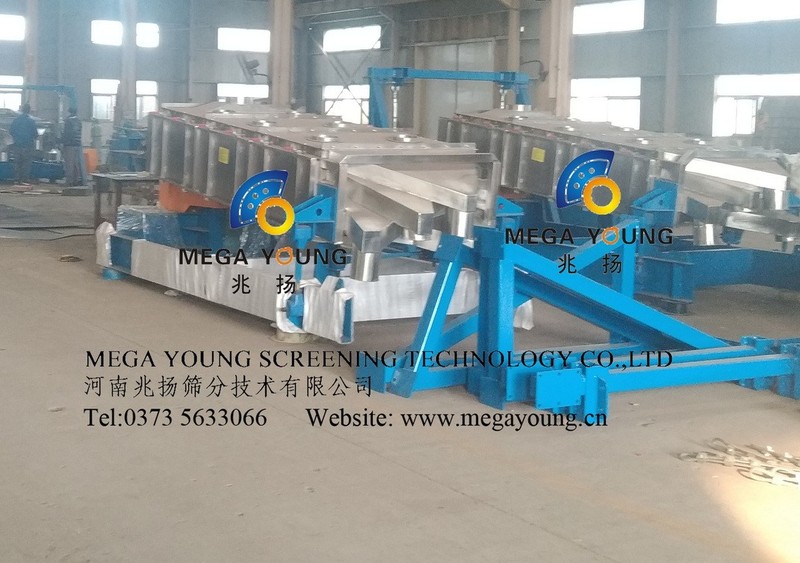

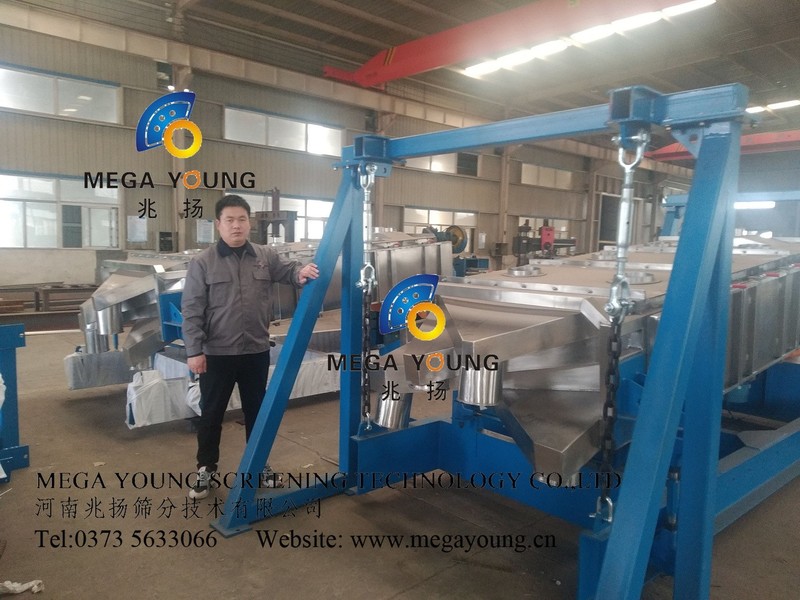

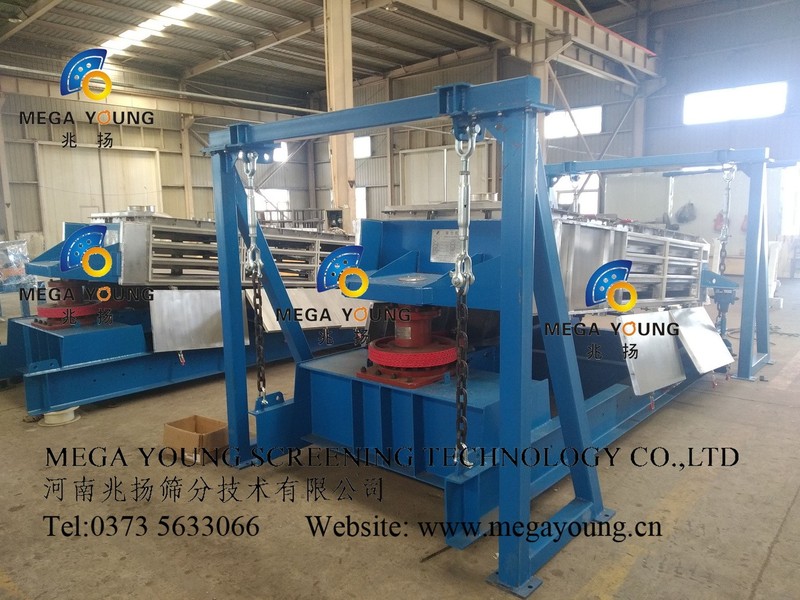

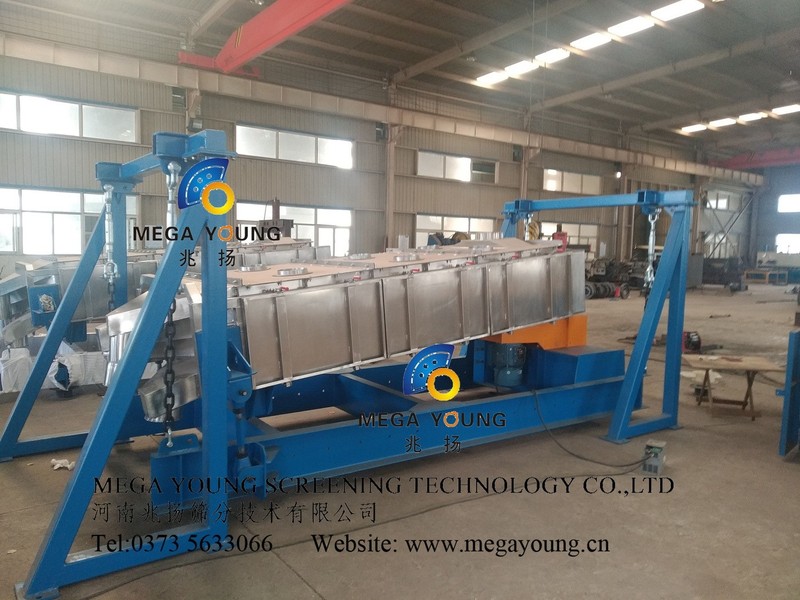

MHG model Side Access Doors gyratory Sifter is one new model screener after traditional MH model screener equipment, its screening principle is same with MH model gyratory screener, major feature is that could change mesh from two side of the screener box.
