Belt Conveyor

　　Belt Conveyor

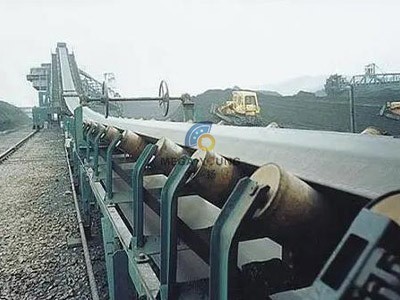

　　DT Series Belt Conveyors feature in high capacity, reasonable structure, easy maintenance, and standard components. It is widely used to transfer granular materials or packaged stuff in many industries, such as mining, metallurgical and coal etc. As perprocess requirement, one single belt or multiples belts can be assembled flexibly with other transferring equipment.

　　DT Series Belt Conveyors should be operated under the condition with temperature range from -20 Celsius Degree to +40 Celsius Degree. The temperature of transferred materials should be lower than +50 Celsius Degree.

　　DT Series Belt Conveyor could be categorized according to different standards as follows:

　　(1) Categorized by driving form:

　　1. Chain Driving Series

　　Driven by cyclical pin-wheel reducer (including outdoor electric motor) and chain-driving structure

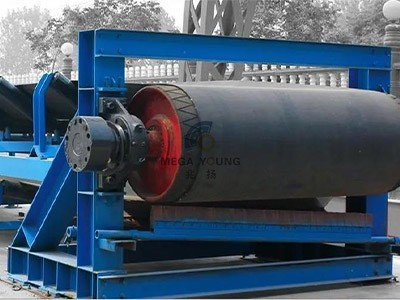

　　2. Mechanical Driving Series

　　Driven by Side-hung reducer and belt-driving structure

　　3. Electric Rotor Driving Series

　　Directly driven by electric rotors

　　(2）Categorized by Installation Manners:

　　1. Fixed Series

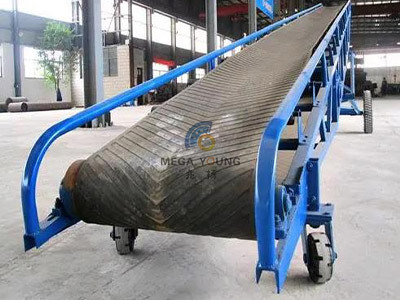

　　2. Mobile Series

　　It is equipped with tires and idler angle adjustment facilities so as to meet diversified requirements according to loading tasks.

　　(3) Categorized by Structure

　　The belt conveyors have three different structures:

　　1. U Steel Structure

　　2. Fame Structure

　　3. Thruster Structure

　　Note: it is optional for clients to order belt conveyors with or without repairing walk-ways.
